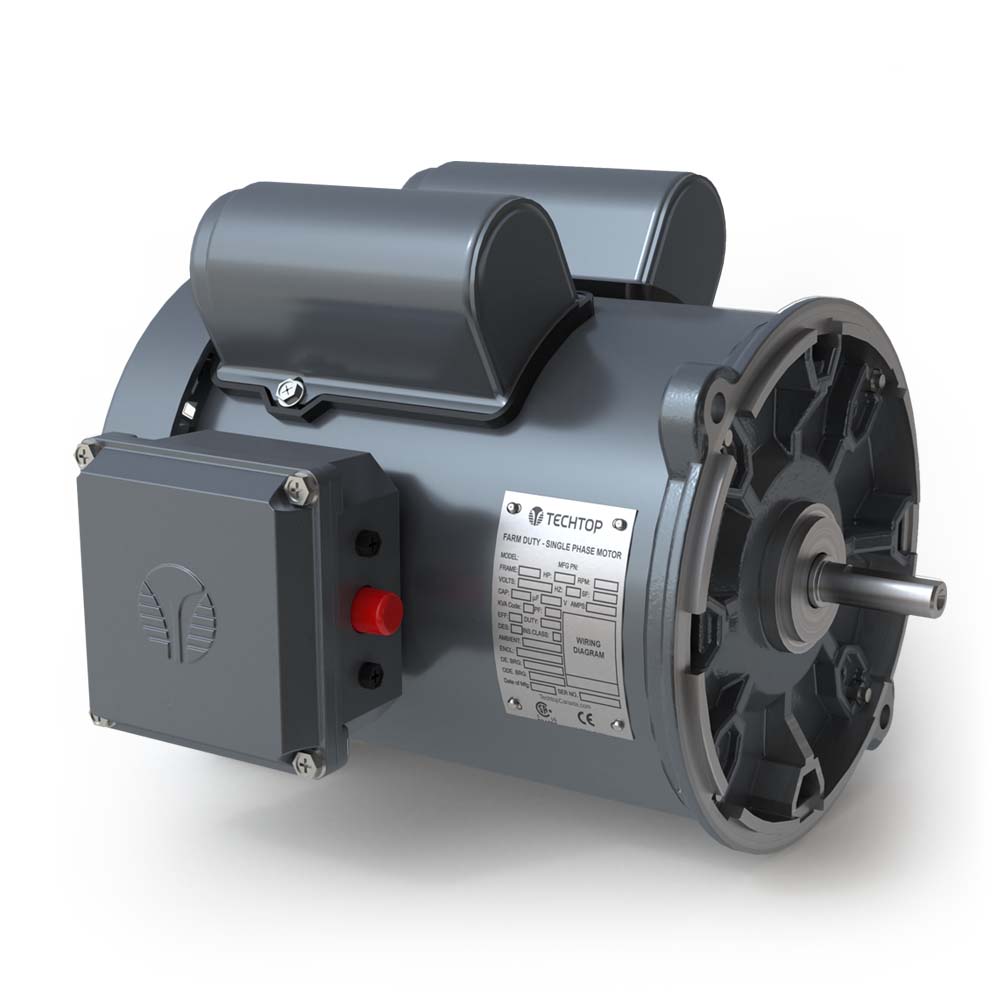

Techtop Auger Duty Electric Motor 0.33HP 115/230V 1800RPM 56Y

Auger Duty 1/3HP 1800RPM 115/230V 56Y TEFC

Product Code: FDA.334C-Y-RND

HP

1/3

Voltage

115/230

RPM

1800

Frame

56Y

Phase

1

Weight 23 lbs

$354.61 CAD

This product qualifies for FREE SHIPPING

Please Call For Availability

Techtop Farm Duty Auger Electric Motor
FDA.334C-Y-RND

1/3HP
115/230V
1800RPM
56Y Frame
1 – Phase

Motor Features
Klixon manual reset thermal overload protectors (FDR models only)
Over 300% starting torque
1.15 Service Factor
18 Month warranty
High quality Japanese switches with beryllium coated contacts
Cold rolled steel construction with cast iron end bells and c-flange kits
Rubber sealed bearings
1045 Steel shaft
Surface finish:
Alkyd enamel RAL7024 – Graphite Gray
Black oxide surface treatment for increased corrosion resistance
Stainless steel nameplate
Corrosion resistant hardware
OPERATING PARAMETERS
Continuous (S1) duty
Ambient temperatures up to 40ÂșC
Installation up to 1000 MASL (3300 ft.)

INGRESS PROTECTION
The standard degree of enclosure protection is IP54 (Weather Proof). Both drive end and non-drive end are fitted with v-seals. Motors include high quality molded capacitor cover gaskets. Conduit box lid and body are sealed with fitted rubber gaskets. DE/NDE end bell fitted with sintered brass one-way drain.

INSULATION RATING
Class F Insulation
Vacuum Impregnated
Designed to Class B temperature rise

Motor Datasheet

fda334cyrnd

Techtop Farm Duty Motors

pdf

Techtop Farm Duty Catalog

Size: 1.15 MB
Hits: 96
Date added: 24-01-2024
pdf

Techtop-Installation-Maintenance-Manual

Size: 1.19 MB
Hits: 95
Date added: 24-01-2024
