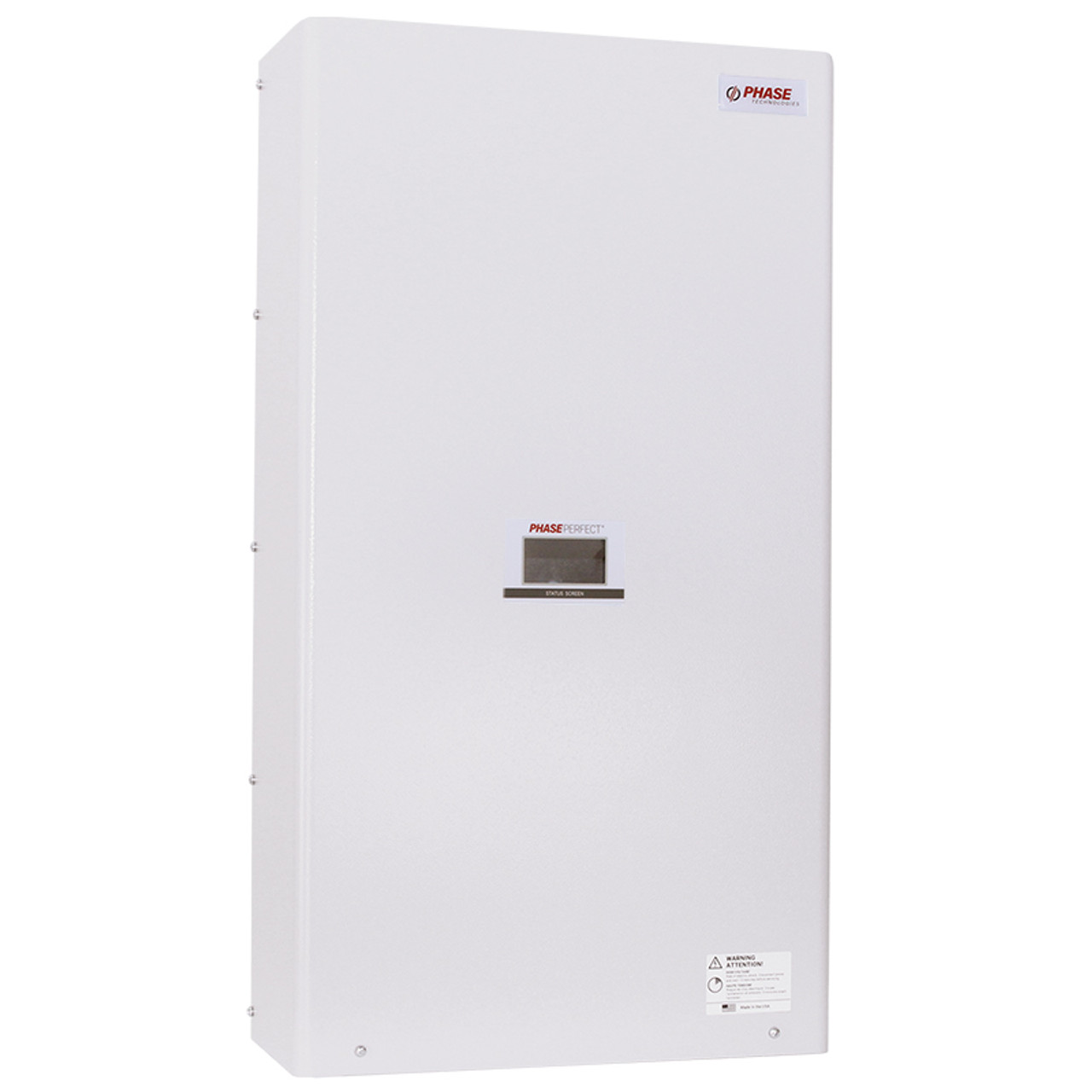

Phase Perfect Voltage Doubling 240V Input 480V Output Indoor Rated 15HP -PTE215

The PTE215 phase converter is a compact 230V/460V voltage-doubling 15 horsepower digital single-phase to three-phase converter. It will supply three-phase 460/480V power from a single-phase 230/240V source for a single or combined loads, including hard starting loads such as compressors, conveyors, and pumps up to 15HP. The supplied power is utility-quality with voltage balance within 2% and has advanced digital monitoring to protect your valuable three-phase equipment.

Product Code: PTE215

HP

15HP

Output Voltage

480V

Weight 71 lbs

$8180.91 CAD

This product qualifies for FREE SHIPPING

Please Call For Availability

PRODUCT DESCRIPTION
15HP 230V ? 460V Digital Phase Converter – Phase Perfect® Enterprise

The PTE215 phase converter is a compact NEMA 1, 230V/460V voltage-doubling 15 horsepower digital single-phase to three-phase converter. It will supply three-phase 460/480V power from a single-phase 230/240V source for a single or combined loads, including hard starting loads such as compressors, conveyors, and pumps up to 15HP. The supplied power is utility-quality with voltage balance within 2% and has advanced digital monitoring to protect your valuable three-phase equipment.

SKU: PTE215

HP: 15HP

Input Voltage:230V

Output Voltage:460V

Max Input: 94A

Max Output: 27A

Weight: 71.00 LBS

Width: 22.00 (in)

Height: 35.00 (in)

Depth:9.00 (in)

Phase Perfect Enterprise Files

pdf

Phase Perfect Product Specs

Size: 4.28 MB
Hits: 42
Date added: 15-02-2024
pdf

Phase Perfect Manual

Size: 2.45 MB
Hits: 47
Date added: 15-02-2024
pdf

Phase Perfect Brochure

Size: 6.36 MB
Hits: 35
Date added: 15-02-2024
