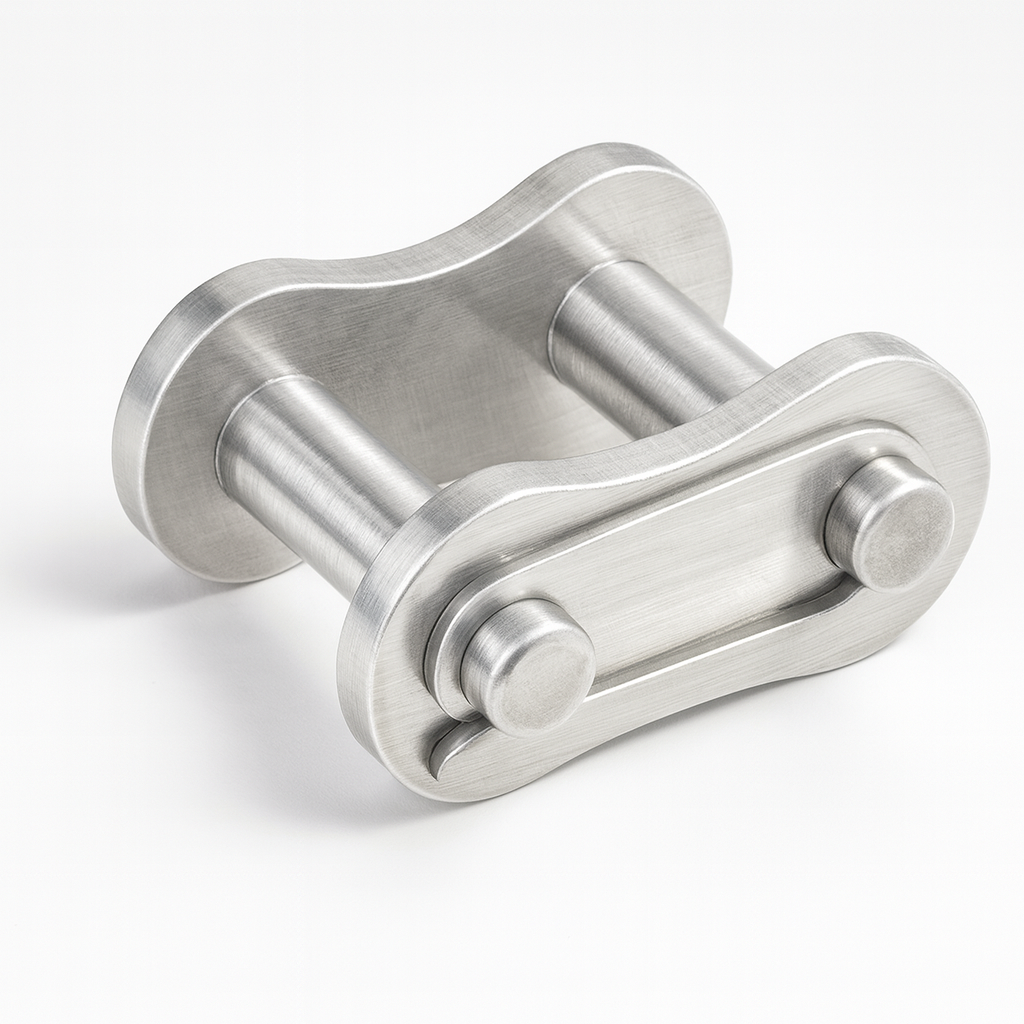

Merley Stainless Steel Roller Chain Connecting Link

Merley SS Connecting Link #35

Stainless Steel Merley Connecting Link #035. Connecting Link for #035 Roller Chain. High strength and durability for industrial applications

Product Code: RC-035-1SSQCL-MER

Style

ANSI
Material

Stainless Steel

Merley SS Connecting Link #35

Make: Merley | Material: Stainless Steel | Style: ANSI | Pitch: 3/8

Dimensional Specifications

  • Overall Width, Riveted: 0.48 in
  • Pin End to Center Line: 0.27 in
  • Pin Head to Center Line: 0.24 in
  • Roller Diameter: 3/16 in
  • Pin Diameter: 0.141 in
  • Plate Height: 0.34 in
  • Nominal Plate Thickness: 0.05 in

Mechanical Details

  • Bearing Area: 0.041 in²
  • Ultimate Strength: 1800 lbs
  • Weight per Foot: 0.2 lbs
  • Availability: Riveted
ANSI Chain 35
