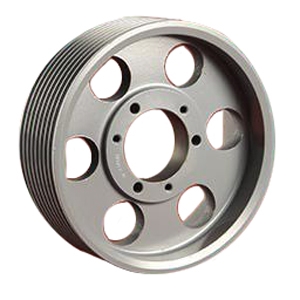

Ten Groove Cast Iron Pulley 12.5" OD
Ten Groove Cast Iron Pulley 12.5" OD - Image 2

Ten Groove Cast Iron Pulley 12.5″ OD

Product Code: 10/5V1250J

Grooves

10
O.D.

12" – 12.9" OD
Weight 71.3 lbs

Please Call For Availability

Ten Groove J Bushing 3 Bolt Hub Cast Iron Pulley

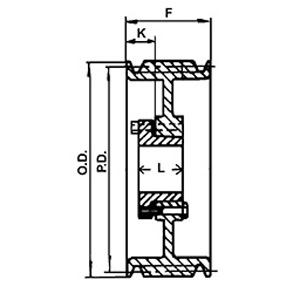

Outside Diameter: 12.5″
Pitch Diameter For 5V Belt: 12.4″
F: 7 3/16″
K: 3 9/16″
L: 3 9/16″
Required Bushing: J
Construction Type: Web
Weight: 71.3 Lbs

Heavy Duty Cast Iron Sheave. Use With 5V,5Vx Belts And 5Vx Banded Belts.

Product Code: 10/5V1250J
