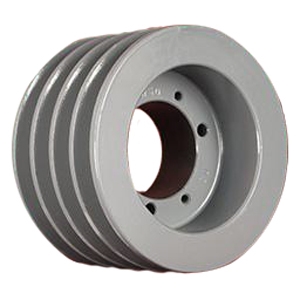

Four Groove Cast Iron Pulley 18.7" OD
Four Groove Cast Iron Pulley 18.7" OD - Image 2

Four Groove Cast Iron Pulley 18.7″ OD

Product Code: 4/5V1870E

Grooves

4
O.D.

18" – 18.9" OD
Weight 51.8 lbs

Please Call For Availability

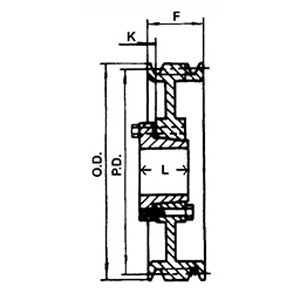

Four Groove E Bushing 3 Bolt Hub Cast Iron Pulley

Outside Diameter: 18.7″
Pitch Diameter For 5V Belt: 18.6″
F: 3 1/16″
K: 1 1/4″
L: 2 3/4″
Required Bushing: E
Construction Type: Spoke
Weight: 51.8 Lbs

Heavy Duty Cast Iron Sheave. Use With 5V,5Vx Belts And 5Vx Banded Belts.

Product Code: 4/5V1870E
