Two Groove Fixed Bore Cast Iron Pulley
Outside Diameter: 8.25″
Pitch Diameter For 3L Belt: 7.66″
Pitch Diameter For 4L Or A Belt: 8.00″
Bore Size: 1 3/16″

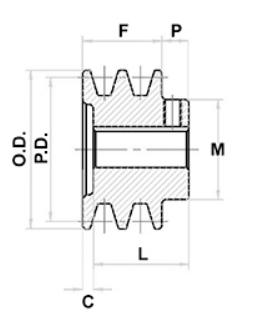

F: 1 3/8″
L: 1 19/32″
P: 11/32″
C: 1/8″
M: 1.70″
Construction Type: Lighting Hole
Ak Sheaves Are Accurately Machined From Gray Cast Iron, Statically Balanced, Painted And Individually Packaged. They Are Furnished With Standard Keyway & 1 Set Screw. All Set Screws Are 51618 Knurled. Use With 3L,4L,A,Ax V-Belts.
Product Code: 2Ak84-15/16″
