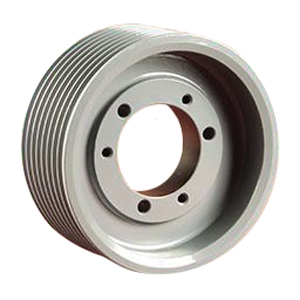

Eight Groove Cast Iron Pulley 7.1" OD
Eight Groove Cast Iron Pulley 7.1" OD - Image 2

Eight Groove Cast Iron Pulley 7.1″ OD

Product Code: 8/5V710SF

Grooves

8
O.D.

7" – 7.9" OD
Weight 20.7 lbs

Please Call For Availability

Eight Groove Sf Bushing 3 Bolt Hub Cast Iron Pulley

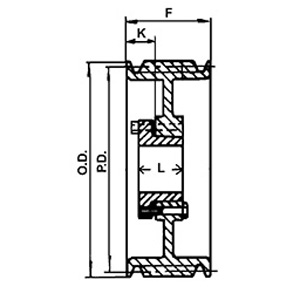

Outside Diameter: 7.1″
Pitch Diameter For 5V Belt: 7″
F: 5 13/16″
K: 2 1/8″
L: 2 1/16″
Required Bushing: Sf
Construction Type: Solid
Weight: 20.7 Lbs

Heavy Duty Cast Iron Sheave. Use With 5V,5Vx Belts And 5Vx Banded Belts.

Product Code: 8/5V710Sf
