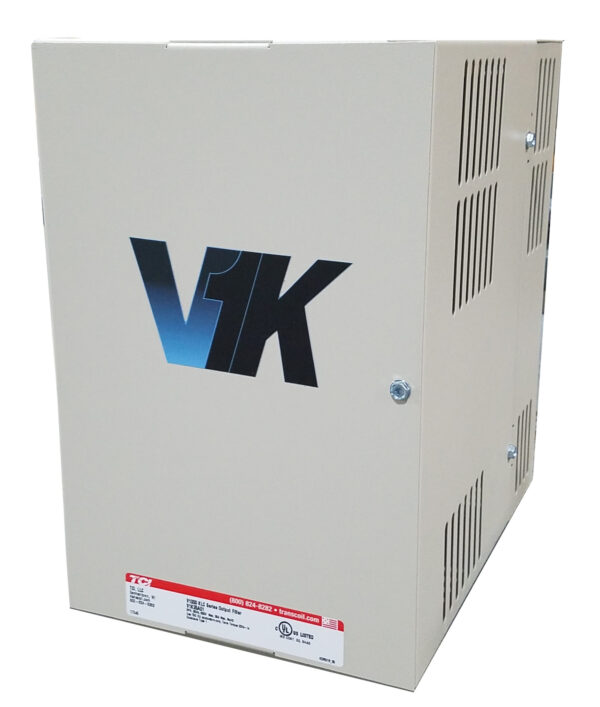

V1000 DV/DT Output Filter – Enclosed – 12A

7.5HP at 480V 10HP at 600V 3HP at 240V

Product Code: V1K12A01

Rated Current



Nema 1

Weight 11 lbs

$1655.28 CAD

This product qualifies for FREE SHIPPING

In Stock

V1000 DV/DT Output Filter – Enclosed – 12A

10 – Depth (in)
5.5 – Width (in)
9 – Height (in)
7.5 HP at 480V
10 HP at 600V
3 HP at 240V

V1k provides Motor Protection by limiting voltage spikes below 1,000 volts for long lead applications(480VAC) and 1300V @ 600VAC

Greatly extends the life of the motor and cable

Specific applications can reach 3,000 feet

30% reduction in common mode current

The V1k is the newest generation of the KLC dv/dt output filter series. V1k filters are UL Listed and available in Open, Type 1 and Type 3R packaging configurations. The V1k supersedes the KLC product line.

V1k Brochure
