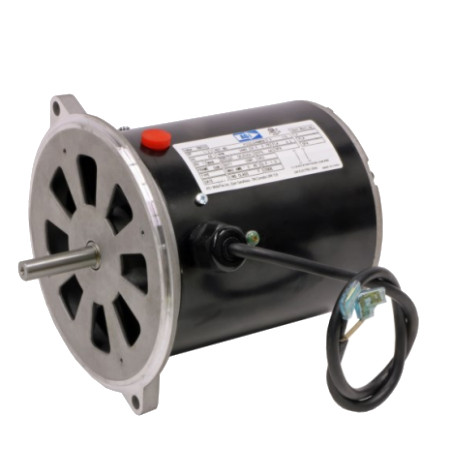

AG-I Electric Motor 0.33HP 3450RPM 115V 56N Oil Burner Motor

AG-I Electric Motor 0.33HP 3450RPM 115V 56N Oil Burner Motor

The AG- I Motortec 0.33 HP Oil Burner Motor delivers a reliable 3450RPM performance and runs on 115V. Built with rugged Rolled Steel construction the OB033 features Automatic Manual Overload.

Product Code: OB033

HP

0.33
Voltage

115
RPM

3450
Frame

56N
Material

Rolled Steel
Make

AG- I Motortec
Weight 14.5 lbs

$777.77 CAD

This product qualifies for FREE SHIPPING

Please Call For Availability

AG-I Motortec 0.33HP 115V 3450RPM 56N Frame Motor

Model: OB033 | HP: 0.33 | Voltage: 115 | RPM: 3450 | Frame: 56N | Enclosure: TEFC

STANDARD FEATURES

  • NEMA 56N frame construction
  • Clockwise rotation facing lead end
  • Non-reversible design
  • Built for oil burner service applications

OPERATING PARAMETERS

  • Split-phase, capacitor start / capacitor run design
  • Manual thermal reset required for restart
  • Designed specifically for burner service applications
  • Precision-balanced for quiet and smooth operation

INSULATION AND PROTECTION

  • Manual thermal overload protection
  • Heavy-duty steel housing
  • Suitable for high-cycle burner ignition environments

Additional Information
Product Details
HP -
Voltage -
RPM -
Frame -
Full Load Current -
Enclosure -
HZ 60
Service Factor -
Phase 3
Insulation Class -
Degree of Protection (IP) -
NEMA Design -
Mounting -
Frame Material -
DE Bearing -
ODE Bearing -
Grease Type -
