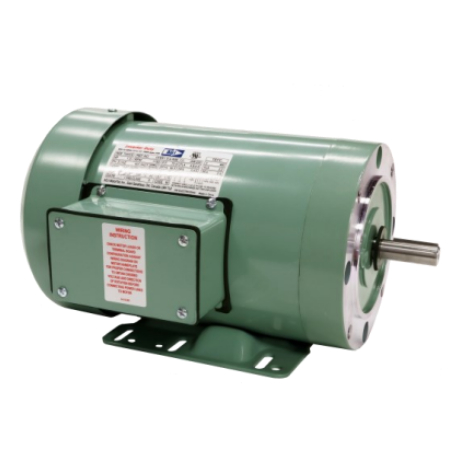

AG-I Electric Motor 0.33HP 1800RPM 208-230/460V 56C/Feet TEFC

AG-I Electric Motor 0.33HP 1800RPM 208-230/460V 56C/Feet TEFC

The AG- I Motortec 0.33 HP 3 Phase electric motor delivers 1800RPM performance and runs on 208-230/460V. Built with rugged Rolled Steel construction and a TEFC frame, it's ideal for farm duty use and harsh agricultural environments.

Product Code: T031C

HP

0.33
Voltage

208-230/460
RPM

1800
Frame

56C/Feet
Material

Rolled Steel
Make

AG- I Motortec
Weight 22 lbs

$342.46 CAD

This product qualifies for FREE SHIPPING

Please Call For Availability

AG-I Motortec 0.33HP 208-230/460V 1800RPM 56C/Feet Frame Motor

Model: T031C | HP: 0.33 | Voltage: 208-230/460 | RPM: 1800 | Frame: 56C/Feet | Enclosure: TEFC

STANDARD FEATURES

  • Totally Enclosed Fan Cooled (TEFC) enclosure
  • Rolled steel frame with epoxy powder-coated finish
  • NEMA design for industrial applications
  • Rated for continuous duty in demanding environments

OPERATING PARAMETERS

  • Designed for 3-phase power supply
  • Built to meet NEMA mechanical and electrical standards
  • Premium Efficiency models are marked in catalog where applicable

INSULATION AND PROTECTION

  • Class F insulation system
  • Precision-balanced rotor for reduced vibration
  • Sealed bearings for extended maintenance intervals
  • CSA compliant for use in industrial environments
