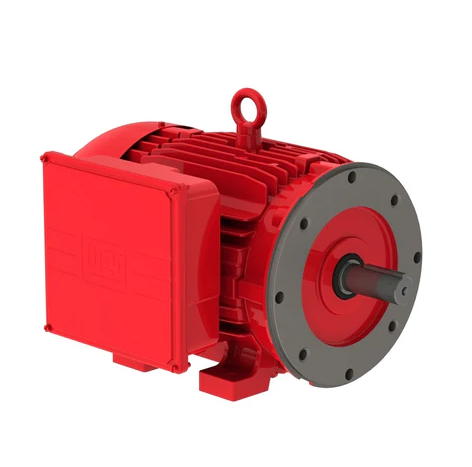

WEG FARM DUTY MOTOR 1PH 12.5HP 230V 1800 215T TEFC

WEG FARM DUTY MOTOR 1PH 12.5HP 230V 1800 215T TEFC

WEG Farm Duty Motors are built to handle the toughest agricultural tasks. With durable TEFC enclosures, they resist dust and moisture for long-lasting performance. These high-efficiency motors deliver reliable power with minimal maintenance.

Product Code: FD012104W22C

HP

12.5
Voltage

230
RPM

1800
Frame

213/5TC
Enclosure

TEFC
Weight 211 lbs

$2758.54 CAD

This product qualifies for FREE SHIPPING

In Stock

WEG Farm Duty Motor – 12.5HP 230V 1800RPM 213/5TC Frame

Model: FD012104W22C | HP: 12.5 | Voltage: 230 | RPM: 1800 | Frame: 213/5TC | Enclosure: TEFC

STANDARD FEATURES

  • Explosion Proof TEFC Design by WEG
  • NEMA Premium Efficiency for high performance and energy savings
  • Continuous Duty, Suitable for Harsh Environments
  • Class F Insulation System
  • Cast Iron Frame with Robust Construction
  • Precision-balanced Rotor for Quiet Operation

OPERATING PARAMETERS

  • Maximum Ambient Temperature: 40°C
  • Altitude: 1000 meters above sea level
  • Standard Service Factor: 1.15
  • Shielded Bearings for Longer Life
  • Operates in Hazardous Locations Class I Div 1 Groups C & D
  • 10:1 CT and 20:1 VT Speed Range Capability

CERTIFICATIONS AND PROTECTION

  • UL and CSA Certified for Hazardous Locations
  • IP55 Protection
  • Inverter Duty Rated per NEMA MG1 Part 31
  • Three Thermostats (One per Phase) for Overtemperature Protection
  • Stainless Steel Nameplate
  • VPI Impregnation for Superior Insulation Protection

Ampro Electric Farm Duty Catalog

Ampro Electric Farm Duty Catalog

File size: 502.39 KB
Created: 26-04-2022
Updated: 26-04-2022
Hits: 37
Download Preview
Data Sheet
Product Details
HP 12.5 HP
Voltage 230
RPM 1800
Frame 213/5TC
Full Load Current -
Enclosure TEFC
HZ 60
Service Factor 1.15
Phase 3
Insulation Class H
Degree of Protection (IP) IP55
NEMA Design 6
Mounting F-1
Frame Material Cast Iron
DE Bearing 6208 2RS
ODE Bearing 6206 2RS
Grease Type Mobil Polyrex EM
