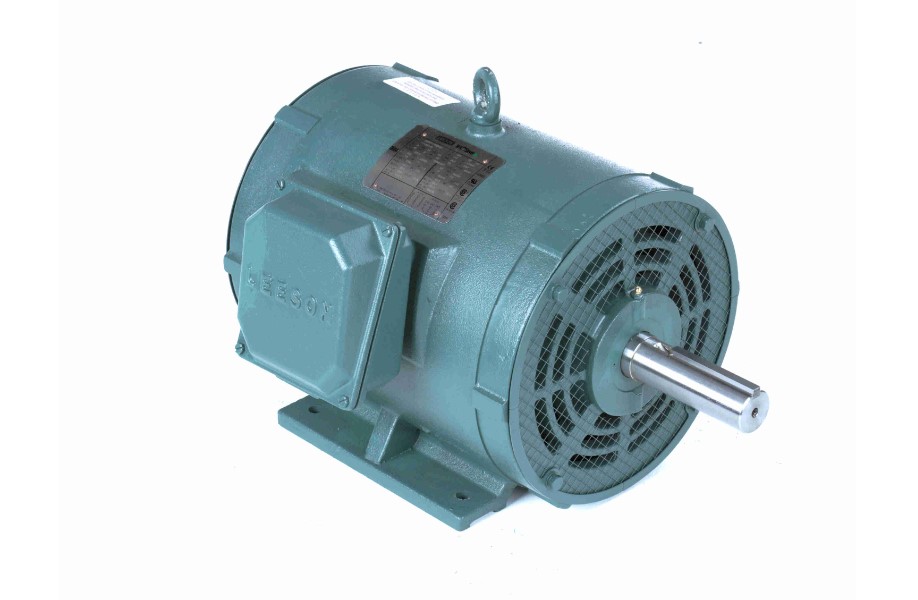

Leeson Farm Duty Motor 15HP

15HP 1775RPM 230/460V 254TZ DP 1 5/8"Shaft

Product Code: 171862.6

HP

15
Voltage

230/460
RPM

1800
Frame

254TZ
Phase

1
Weight 279 lbs

Please Call For Availability

Leeson Farm Duty Motor

15HP
Voltage – 230/460
1775 RPM
254TZ Frame
1 – Phase
Amps – 40.5-37.0/18.5
Service Factor – 1.15
Efficiency – 0.93
Hz – 60 Hz
Insulation – F
Duty – Continuous
Enclosure – Drip Proof
Thermal Protection – No Protection
Ambient Temperature – 40°C
Drive End Bearing – 6309
Non-Drive End Bearing – 6208
CSA Approved – Y
Rotation – Reversible
Mounting – Rigid Base
Material – Cast Iron
Shaft Diameter – 5 in
Shaft Length –

NEMA® Premium and EPAct efficiency
Rodent screens
Regreasable bearings
Cast Iron construction
1” longer shaft than NEMA standard
Inverter duty insulation system
UL Recognized and CSA certified
