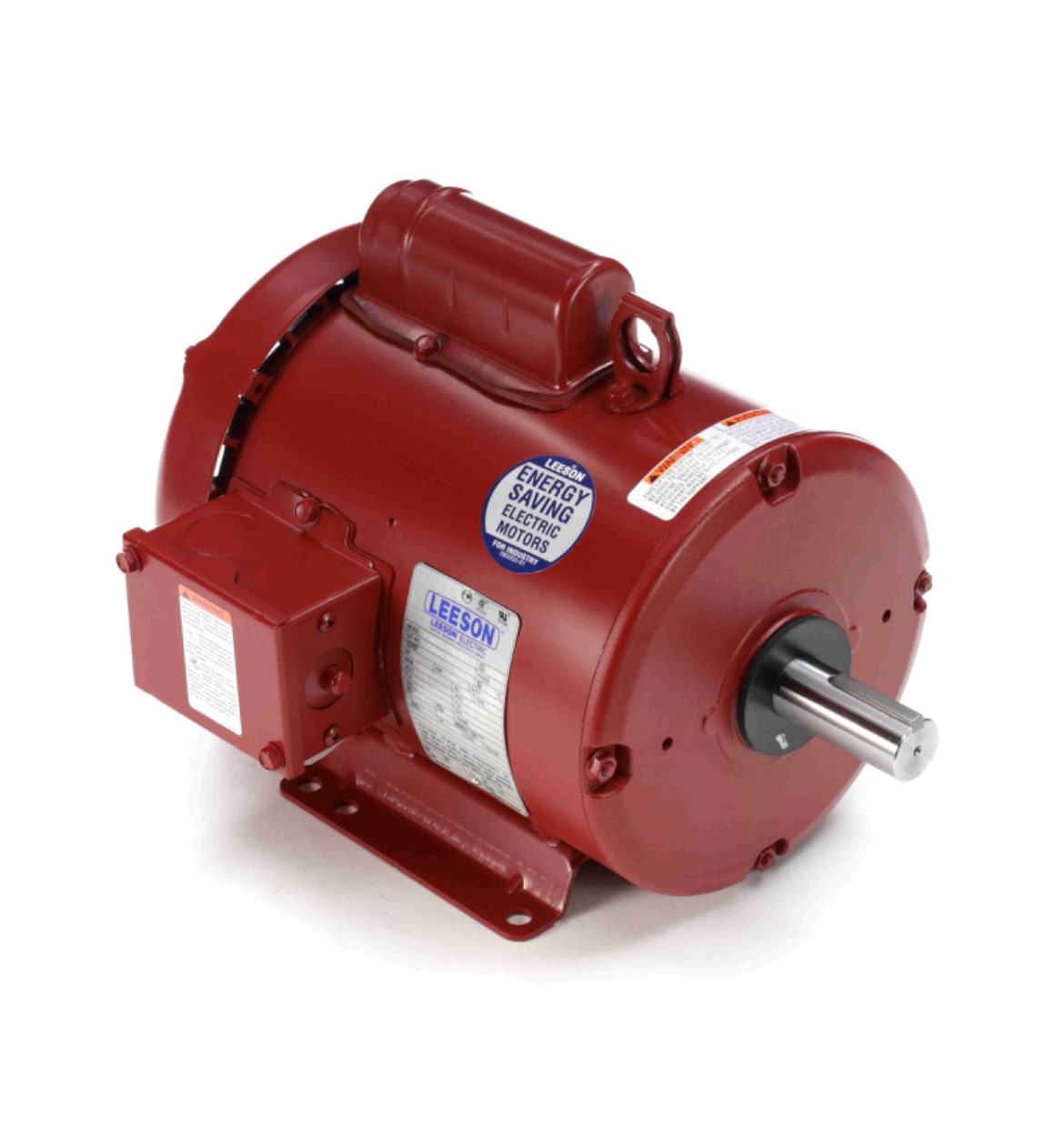

Leeson Farm Duty Motor
131995
5HP
Voltage – 230
1740 RPM
184TC Frame
1 – Phase
Amps – 20.5
Service Factor – 1.15
Efficiency – 0.825
Hz – 60 Hz
Insulation – F
Duty – Continuous
Enclosure – Totally Enclosed Fan Cooled
Thermal Protection – Manual
Ambient Temperature – 40°C
Drive End Bearing – 6206
Non-Drive End Bearing – 6205
CSA Approved – Y
Rotation – Selective Counterclockwise
Mounting – Rigid Base
Material – Rolled Steel
Shaft Diameter – 1.125 in
Shaft Length – 2.75 in
Gasketed capacitor cases and conduit box covers
Meets or exceeds NEMA ® service factors
Manual rest overload protection
UL recognized component listing and CSA certified
