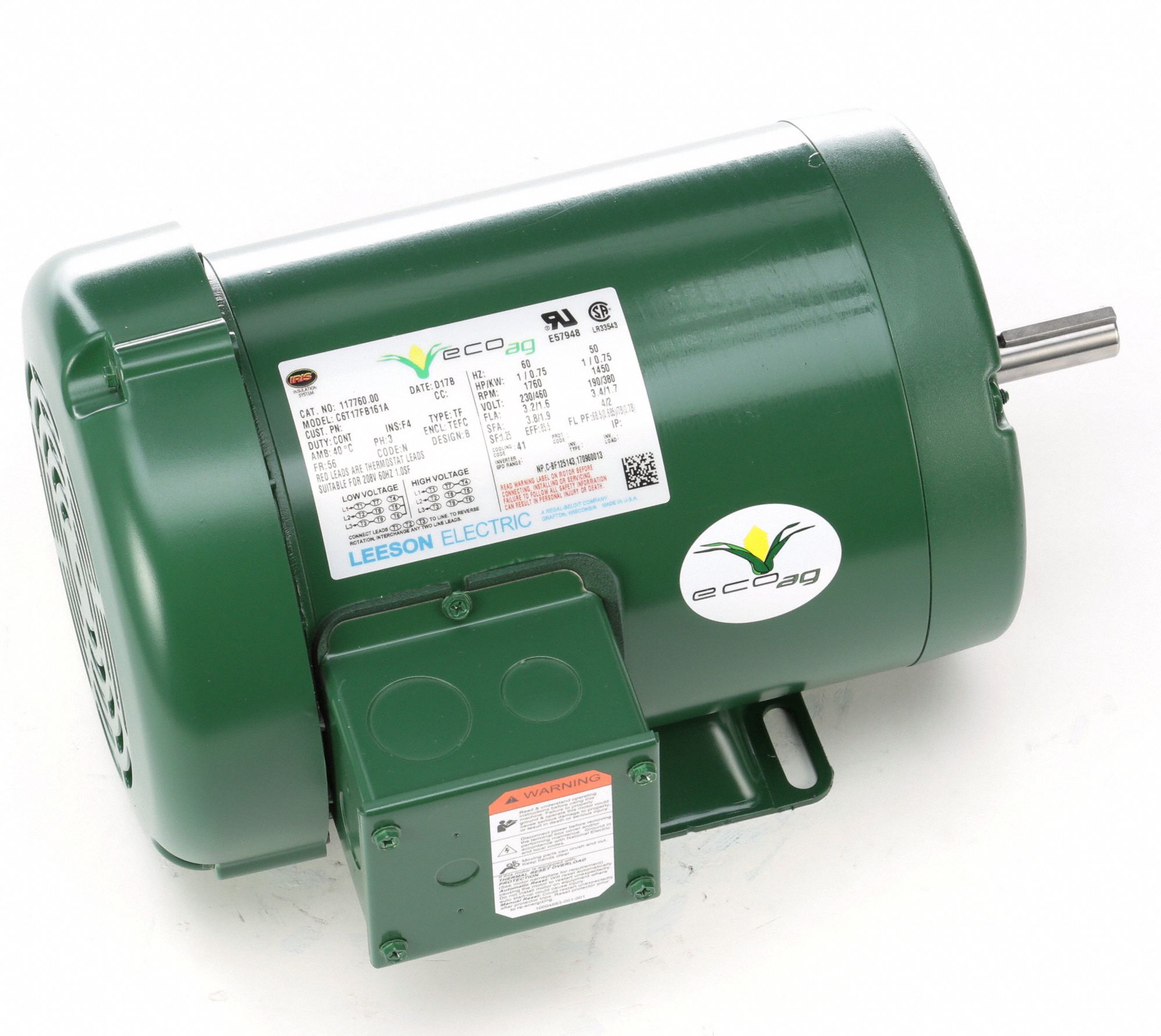

Leeson Farm Duty Motor
132329
5HP
Voltage – 230/460
1760 RPM
184T Frame
1 – Phase
Amps – 12.6/6.3
Service Factor – 1.15
Efficiency – 0.895
Hz – 60 Hz
Insulation – F
Duty – Continuous
Enclosure – Totally Enclosed Fan Cooled
Thermal Protection – Thermostat
Ambient Temperature – 40°C
Drive End Bearing – 6206
Non-Drive End Bearing – 6205
CSA Approved – Y
Rotation – Reversible
Mounting – Rigid Base
Material – Rolled Steel
Shaft Diameter – 1.125 in
Shaft Length – 2.75 in
Premium efficient designs
Double sealed ball bearings
Shaft flinger – output shaft
Normally closed thermostat protection
Weep holes provide condensation drains
