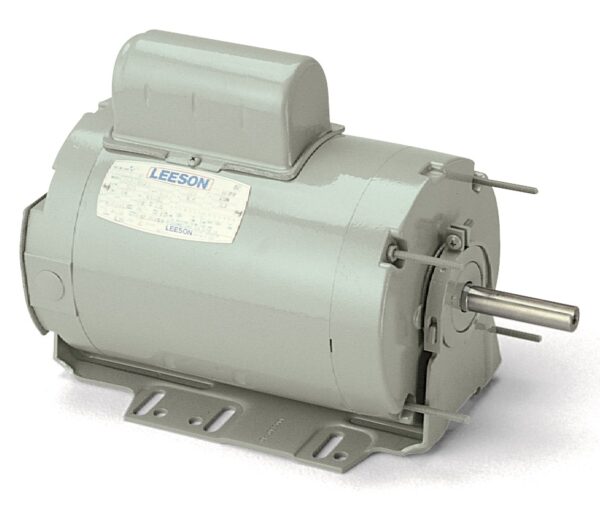

Leeson Farm Duty Motor
111348
1/3HP
Voltage – 115/230
1625 RPM
56HY Frame
1 – Phase
Amps – 3.4/1.7
Service Factor – 1
Efficiency – 0.66
Hz – 60 Hz
Insulation – B
Duty – Continuous
Enclosure – Totally Enclosed Air Over
Thermal Protection – Automatic
Ambient Temperature – 40°C
Drive End Bearing – 6203
Non-Drive End Bearing – 6203
CSA Approved – Y
Rotation – Selective Counterclockwise
Mounting – Resilient Base
Material – Rolled Steel
Shaft Diameter – 0.500 in
Shaft Length – 3 in
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Double-shielded bearings extend the service life of the motor.
Single and three phase, TEFC, TEAO, and ODP construction.
Overload protection prevents motor from overheating.
