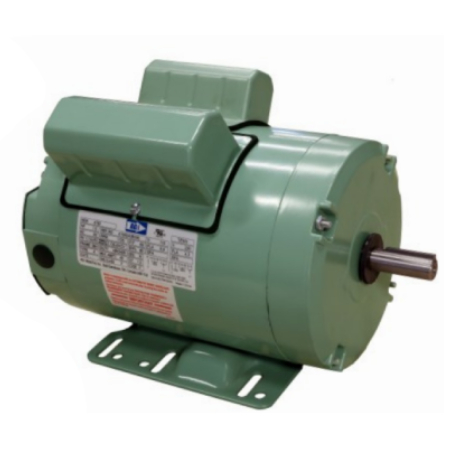

AG-I Electric Motor 1.5HP 1725RPM 115/208-230V 56H TEAO Premium Efficiency Agricultural Fan Motor

AG-I Electric Motor 1.5HP 1725RPM 115/208-230V 56H TEAO Premium Efficiency Agricultural Fan Motor

The AG- I Motortec 1.5 HP Premium Efficiency Belt Drive Fan motor delivers a reliable 1725RPM performance and runs on 115/208-230V. Built with rugged Rolled Steel construction and a TEAO style frame. The A594 features Automatic Thermal Overload.

Product Code: A594

HP

1.5
Voltage

115/208-230
RPM

1725
Frame

56H
Material

Rolled Steel
Make

AG- I Motortec
Weight 49 lbs

$604.57 CAD

This product qualifies for FREE SHIPPING

In Stock

AG-I Motortec 1.5HP 115/208-230V 1725RPM 56H Frame Motor

Model: A594 | HP: 1.5 | Voltage: 115/208-230 | RPM: 1725 | Frame: 56H | Enclosure: TEAO

STANDARD FEATURES

  • Totally Enclosed Air Over (TEAO) construction
  • Includes Torq centrifugal and stationary switch system
  • 1 phase models are cap start-cap run

OPERATING PARAMETERS

  • Automatic thermal overload protection
  • Precision balanced rotor
  • Fan duty rated for continuous belt-drive operation

INSULATION AND PROTECTION

  • Class F insulation with Class B temperature rise
  • Epoxy-coated motor frame for corrosion resistance
