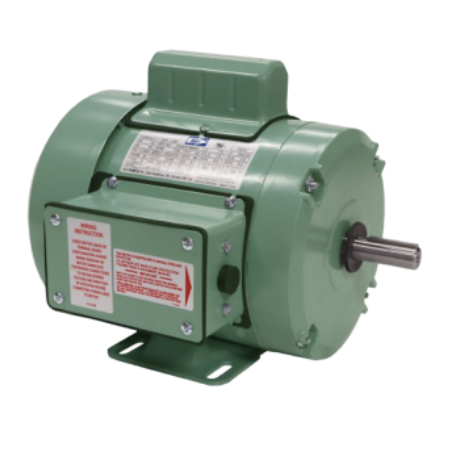

AG-I Electric Motor 0.5HP 1725RPM 115/208-230V 56 TEAO Premium Efficiency Agricultural Fan Motor

AG-I Electric Motor 0.5HP 1725RPM 115/208-230V 56 TEAO Premium Efficiency Agricultural Fan Motor

The AG- I Motortec 0.5 HP Belt Drive Fan Motor delivers a reliable 1725RPM performance and runs on 115/208-230V. Built with rugged Rolled Steel construction and a TEAO style frame, with a inch shaft. The A580 features Automatic Thermal Overload.

Product Code: A580

HP

0.5
Voltage

115/208-230
RPM

1725
Frame

56
Material

Rolled Steel
Make

AG- I Motortec
Weight 30 lbs

$427.47 CAD

This product qualifies for FREE SHIPPING

In Stock

AG-I Motortec 0.5HP 115/208-230V 1725RPM 56 Frame Motor

Model: A580 | HP: 0.5 | Voltage: 115/208-230 | RPM: 1725 | Frame: 56 | Enclosure: TEAO

STANDARD FEATURES

  • Totally Enclosed Air Over (TEAO) construction
  • Includes Torq centrifugal and stationary switch system
  • 1 phase models are cap start-cap run

OPERATING PARAMETERS

  • Automatic thermal overload protection
  • Precision balanced rotor
  • Fan duty rated for continuous belt-drive operation

INSULATION AND PROTECTION

  • Class F insulation with Class B temperature rise
  • Epoxy-coated motor frame for corrosion resistance
