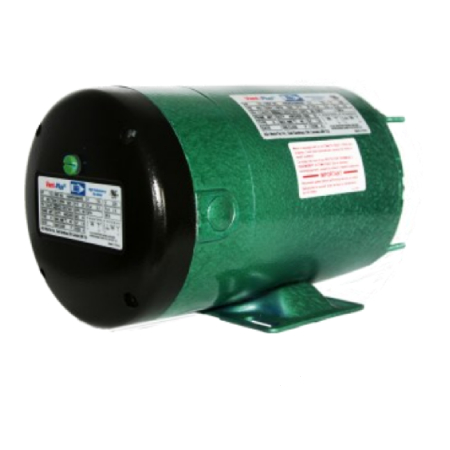

AG-I Electric Motor 0.33HP 1625RPM 115/208-230V 48 TEAO Agricultural Fan Motor

AG-I Electric Motor 0.33HP 1625RPM 115/208-230V 48 TEAO Agricultural Fan Motor

The AG- I Motortec 0.33 HP High Performance Agricultural Fan Motor delivers a reliable 1625RPM performance and runs on 115/208-230V. Built with rugged Rolled Steel construction and a TEAO style frame, with a .5 X 2.5 inch shaft. The H900 features Automatic Thermal Overload.

Product Code: H900

HP

0.33
Voltage

115/208-230
RPM

1625
Frame

48
Material

Rolled Steel
Make

AG- I Motortec
Weight 19 lbs

$346.86 CAD

This product qualifies for FREE SHIPPING

In Stock

AG-I Motortec 0.33HP 115/208-230V 1625RPM 48 Frame Motor

Model: H900 | HP: 0.33 | Voltage: 115/208-230 | RPM: 1625 | Frame: 48 | Enclosure: TEAO

STANDARD FEATURES

  • Totally Enclosed Air Over (TEAO) construction
  • Rolled steel housing with epoxy powder coat finish
  • Water-tight compartment houses wiring, automatic thermal, and capacitor
  • Oil seal in drive end

OPERATING PARAMETERS

  • PSC motor design with no mechanical switch
  • Includes VENT-PLUS technology for improved airflow efficiency
  • Automatic thermal overload protection on all models
  • Suitable for use in horizontal or vertical mount positions

INSULATION AND PROTECTION

  • Class F insulation with Class B temperature rise
  • Locked, double-sealed bearings
  • IP55 ingress protection for dust and moisture resistance
