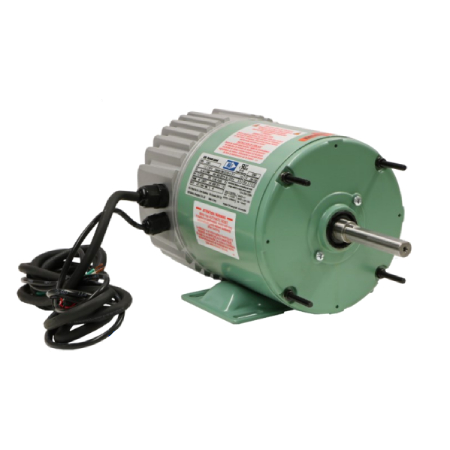

AG-I Electric Premium Effciency 0.5HP 450-1625RPM 115-230V 48 EC Fan Motor

AG-I Electric Premium Effciency 0.5HP 450-1625RPM 115-230V 48 EC Fan Motor

The AG- I Motortec 0.5 HP EC Fan Motor delivers a variable 450-1625RPM performance and runs on 115-230V. Built with rugged Rolled Steel construction and a TEAO frame, with a .5 X 2.5 inch Shaft.

Product Code: EC801

HP

0.5
Voltage

115/230
RPM

450-1625
Frame

48
Material

Rolled Steel
Make

AG- I Motortec
Weight 11.5 lbs

$443.34 CAD

This product qualifies for FREE SHIPPING

In Stock

AG-I Motortec 0.5HP 115-230V 450-1625RPM 48 Frame Motor

Model: EC801 | HP: 0.5 | Voltage: 115-230 | RPM: 450-1625 | Frame: 48 | Enclosure: TEAO

STANDARD FEATURES

  • Totally Enclosed Air Over (TEAO) enclosure
  • NEMA frame construction
  • Locked bearings and oil seals
  • Large external heat sink for thermal dissipation

OPERATING PARAMETERS

  • Rated for premium efficiency performance
  • Speed control via 0–10VDC or onboard potentiometer
  • Supports horizontal or vertical mounting
  • Designed for agricultural or industrial environments
  • Silicone-potted circuit board

INSULATION AND PROTECTION

  • IP55 ingress protection
  • Automatic thermal overload protection
  • CSA and UL recognized components
  • Internally protected against environmental stress
