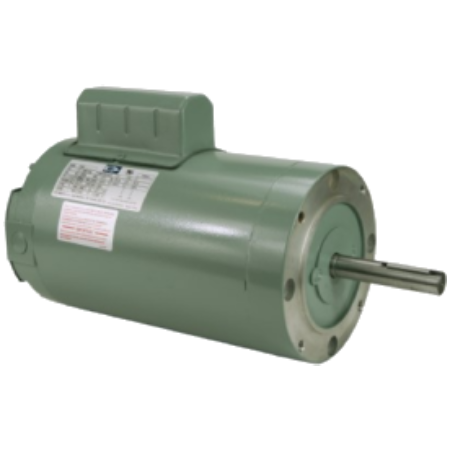

AG-I Electric Motor 1HP 850RPM 230/1V 56CZ TEAO Agricultural Fan Motor

AG-I Electric Motor 1HP 850RPM 230/1V 56CZ TEAO Agricultural Fan Motor

The AG- I Motortec 1 HP Agricultural Fan Motor delivers a reliable 850RPM performance and runs on 230/1V. Built with rugged Rolled Steel construction and a TEAO frame, with a .75 X 3.5 inch Shaft.

Product Code: F644

HP

1
Voltage

230/1
RPM

850
Frame

56CZ
Material

Rolled Steel
Make

AG- I Motortec
Weight 45 lbs

$622.88 CAD

This product qualifies for FREE SHIPPING

In Stock

AG-I Motortec 1HP 230/1V 850RPM 56CZ Frame Motor

Model: F644 | HP: 1 | Voltage: 230/1 | RPM: 850 | Frame: 56CZ | Enclosure: TEAO

STANDARD FEATURES

  • Totally Enclosed Air Over (TEAO) enclosure
  • Rolled steel frame with epoxy-coated finish
  • NEMA frame construction
  • Locked, double-sealed bearings for all-angle mounting

OPERATING PARAMETERS

  • Permanent Split Capacitor (PSC) motor design
  • Operates on 115/230V fixed-speed input
  • Manual thermal overload protection
  • IP55 ingress protection

INSULATION AND PROTECTION

  • Class F insulation with Class B temperature rise
  • Bearings equipped with high-temperature grease
  • Low running amps and high power factor
