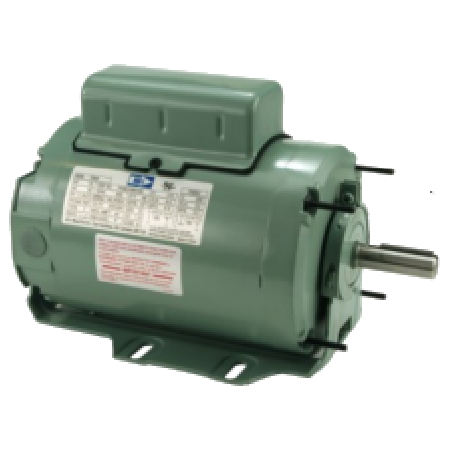

AG-I Electric Motor 0.5HP 1060RPM 115/230V 48Z TEAO Agricultural Fan Motor

AG-I Electric Motor 0.5HP 1060RPM 115/230V 48Z TEAO Agricultural Fan Motor

The AG- I Motortec 0.5 HP Agricultural Fan Motor delivers a reliable 1060RPM performance and runs on 115/230V. Built with rugged Rolled Steel construction and a TEAO frame, with a .625 X 2 inch Shaft.

Product Code: F836

HP

0.5
Voltage

115/230
RPM

1060
Frame

48Z
Material

Rolled Steel
Make

AG- I Motortec
Weight 24 lbs

$376.18 CAD

This product qualifies for FREE SHIPPING

In Stock

AG-I Motortec 0.5HP 115/230V 1060RPM 48Z Frame Motor

Model: F836 | HP: 0.5 | Voltage: 115/230 | RPM: 1060 | Frame: 48Z | Enclosure: TEAO

STANDARD FEATURES

  • Totally Enclosed Air Over (TEAO) enclosure
  • Rolled steel frame with epoxy-coated finish
  • NEMA frame construction
  • Locked, double-sealed bearings for all-angle mounting

OPERATING PARAMETERS

  • Permanent Split Capacitor (PSC) motor design
  • Operates on 115/230V fixed-speed input
  • Manual thermal overload protection
  • IP55 ingress protection

INSULATION AND PROTECTION

  • Class F insulation with Class B temperature rise
  • Bearings equipped with high-temperature grease
  • Low running amps and high power factor
