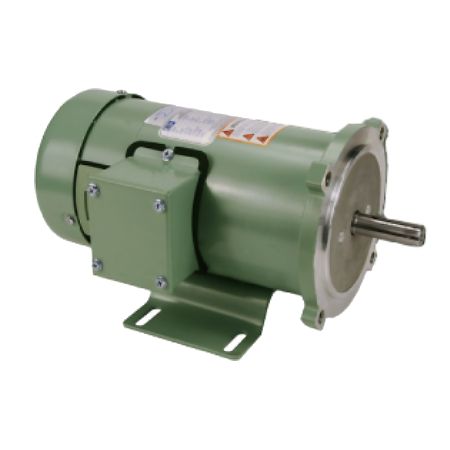

AG-I Electric Motor 0.5HP 1800RPM 180V SS56C/Feet DC Permenant Magnet Motor

AG-I Electric Motor 0.5HP 1800RPM 180V SS56C/Feet DC Permenant Magnet Motor

The AG- I Motortec 0.5 HP Permanent Magnet electric motor delivers 1800RPM performance and runs on 180V. Built with rugged Rolled Steel construction and a TEFC frame. SCR Rated.

Product Code: PM008

HP

0.5
Voltage

180
RPM

1800
Frame

SS56C/Feet
Material

Rolled Steel
Make

AG- I Motortec
Weight 21.4 lbs

$463.14 CAD

This product qualifies for FREE SHIPPING

Please Call For Availability

AG-I Motortec 0.5HP 180V 1800RPM SS56C/Feet Frame Motor

Model: PM008 | HP: 0.5 | Voltage: 180 | RPM: 1800 | Frame: SS56C/Feet | Enclosure: TEFC

STANDARD FEATURES

  • Permanent magnet DC motor design
  • Low-noise operation with precision-balanced armature
  • Rolled steel frame with removable base
  • Replaceable brushes designed for extended use

OPERATING PARAMETERS

  • Constant torque speed range up to 20:1
  • Designed for operation on 12V to 180V DC power sources
  • SCR-rated for use with compatible DC drives
  • Frame dimensions follow NEMA standards

INSULATION AND PROTECTION

  • Insulation rated for industrial DC motor applications
  • Sealed bearings reduce wear and maintenance
  • Designed for industrial DC motor applications

Additional Information
Product Details
HP -
Voltage -
RPM -
Frame -
Full Load Current -
Enclosure -
HZ 60
Service Factor -
Phase 3
Insulation Class -
Weight -
Degree of Protection (IP) -
NEMA Design -
Mounting -
Frame Material -
DE Bearing -
ODE Bearing -
Grease Type -
